C152 Heavy Duty

152 cm Flood Barrier for Reliable Flood Protection

C152 Header image – 2

The C152 is a model within our Heavy Duty product range, featuring the same stable, robust, and durable construction as the other flood barriers in the series. With only two aluminum sheets and two connection rods required per section, the C152 is an incredibly efficient system for achieving an impressive 152 cm dam height in a short time.

Get a qoute now

Dam height

152 cm

Section width
C/C

122 cm

Deployment time
(100 m / 6 people)

55 min

Footprint
(Barrier and membrane)

4.4 m

European patent No. EP3359743
ANSI 2510-2020Maximum Rated Water Depth 40”Flood barriers for perimeter barrier applications
ISO 9001-2015, ISO 14001-2015
727F7D2A-1EA8-4909-9216-E34727E332DEUS Patent No.: US 10,508,396 B1

Geodesign Barriers' C152: The Perfect Balance Between Height and Speed

Introducing the C152 Heavy Duty flood barrier, one of five models in our Heavy Duty series. Like its siblings, the C152 features a triangular metal support that folds out and is connected with two connection rods. Aluminum sheets are hung on the connection rods, and the barrier is covered with a laminate-coated high-density polyethylene membrane to create a seal against the ground.

As with all Geodesign Barriers, the C152 can be set up without any tools, machinery, or groundwork. The water pressure pushes the barrier into the ground and makes it self-anchoring.

The C152 uses only two aluminum sheets and two connection rods, similar to the C122. However, with a larger aluminum sheets, the C152 achieves an impressive dam height of 152 cm. The barrier strikes an optimized balance between height and speed, providing quick and efficient protection against flooding.

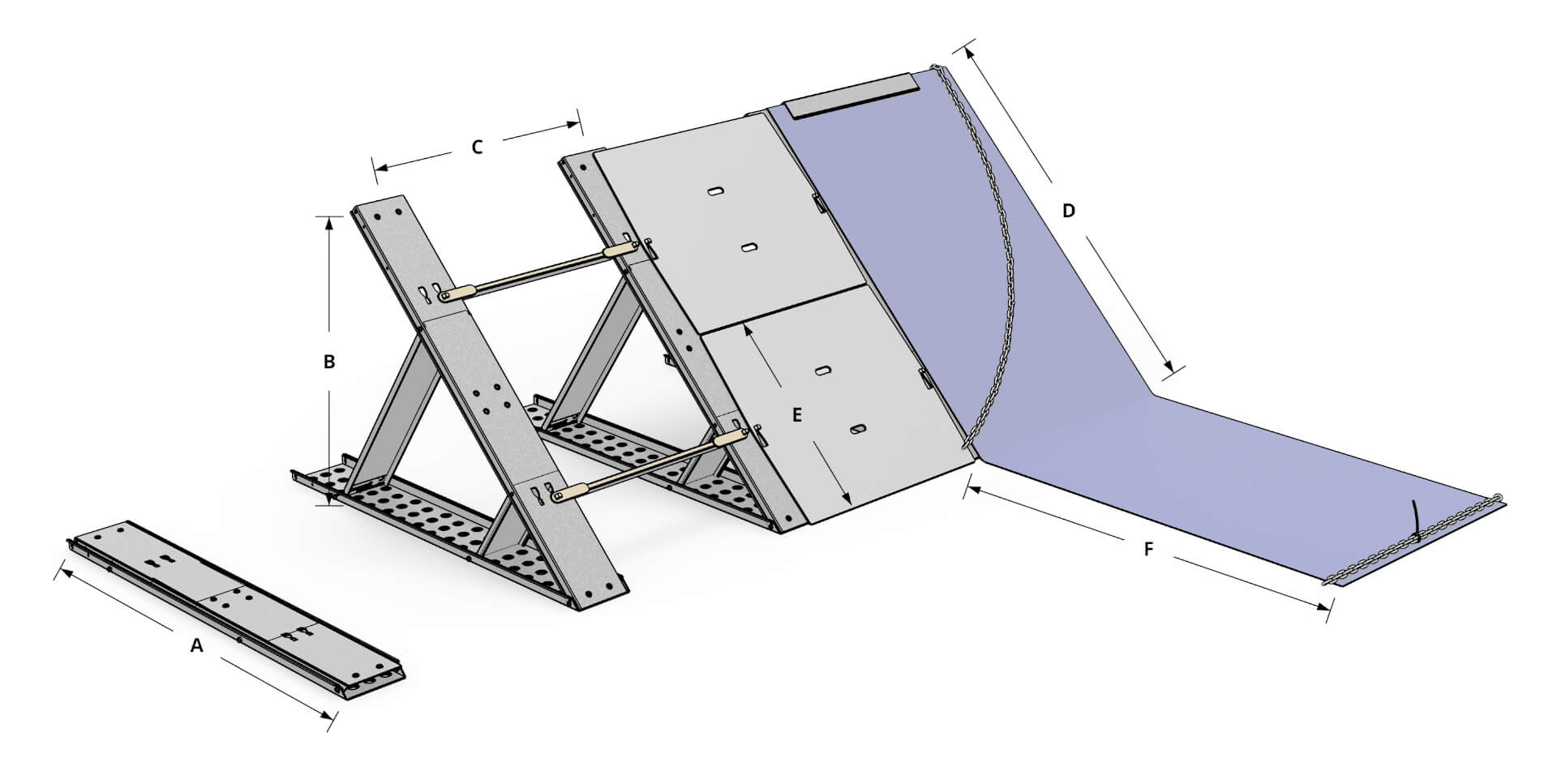

Technical image – C152 (1)

Key Measurements

for C152 Heavy Duty Flood Barrier

Barrier footprint without membrane (A) 218 cm
Maximum Water Column / Dam height (B) 152 cm
Section Width (C) 122 cm
Inclined Length (D)
216 cm
Aluminum sheet height (E) 107 cm
Membrane ground length (F) 214 cm
Membrane width (F+D+20 cm) 450 cm
Installation footprint (A+F) 432 cm

Technical Specifications & Performance Metrics

for C152 Heavy Duty

Maximum Water Column / Dam height (A) 152 cm
Set up time 100 metres by 6 workers 55 min
Certifications FM Approval ANSI 2510-2020
Section Weight 78.4 kg
Water Flow Resistance 4 m/s
Extendable +15 cm or +61 cm to C213
Factor of safety 1.5
Load / section 19.63 kN

Barrier parts needed
to build a stright section
of C152 Heavy Duty

Produc image – C152 support

Barrier Support C152

Material High Strength low alloy steel
Dimensions L219 x W32 x D6.5 cm
Weight 29 kg
Quantity / section 1 pc
Produc image – C152 Link bar

Link Bar 1219

Material High-strength steel
Dimensions L122 x W5 x D7 cm
Weight 3 kg
Quantity / section 2 pcs

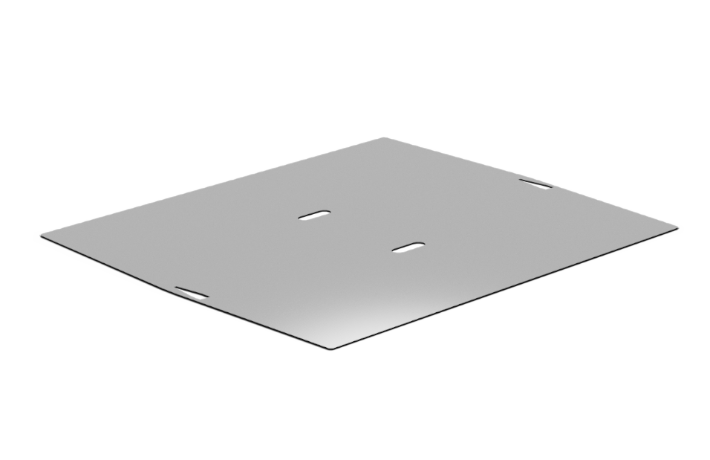

Product image – C152 Alu panel

Alu Sheet 1071

Material Aluminium Checker Plate
Dimensions L120 x W107 x T0.7 cm
Weight 17 kg
Quantity / section 2 pcs
Produc image – C152 Membrane

Poly Liner

Material PVC coated Low Density Polyethylene
Dimensions L33 x W4.5 m - 420 g/m2
Weight 62 kg per roll
Quantity / section 1.2 m / 0.037 roll
Produc image – C152 Chain

Chain 5 m x 12 mm galvanized

Material Galvanized Steel DIN763
Dimensions L5 m x 12mm links  excluding carabiners
Weight 11.3 kg
Quantity / section 3 m / 0.58 pcs
Produc image – C152 Cable tie

Reusable Cable Tie

Material Nylon
Dimensions L38 cm
Weight 0.001 kg
Quantity / section 2 pcs
Produc image – C152 Panel clip

Panel Clip

Material High Strength low alloy steel
Dimensions L97 x W12.5 cm
Weight 3.75 kg
Quantity / section 1 pc

The Solution for Tricky Angles and Turns.

The C152 Heavy Duty flood barrier offers maximum flexibility with the ability to turn in 15-degree increments. Our innovative design utilizes adjustable connection rods and specially designed corner elements to allow for quick and easy assembly of hearing sections.

Not only can the C152 Heavy Duty barrier be built to suit a variety of angles, but our specially designed corner elements can be used for both outer and inner turns, making the process even more streamlined.

C152 – Overview image (1)
Maximum Water Column / Dam height (A) 152 cm
Set up time 90 degrees by 6 workers 55 min
Section Weight 78.4 kg
Turning radius / section 15 degree
Extendable No

90 degree Outer corner
C152 Heavy Duty Key Measurements

Upper arc length (A) 250 cm
Lower arc length (B) 470 cm
Membrane length (C) 805 cm
Turning radius 515 cm
Sealer clips 9
C152 – Outer corner

90 degree Inner corner
C152 Heavy Duty Key Measurements

Turning radius (G) 340 cm
Lower inner arc length (F) 180 cm
Lower outer arc length (E) 530 cm
Upper arc length (D) 420 cm
Membrane length 420 m
Sealer clips 6
C152 – Inner corner

Barrier parts needed
to build a 90 degree corner with Heavy Duty C152

Produc image – C152 support

Barrier Support C152

Material High Strength low alloy steel
Dimensions L219 x W32 x D6.5 cm
Weight 29 kg
Quantity / 90 degree corner 3 pcs
Produc image – C152 Adj Link bar

Adjustable Link Bar Long

Material High Strength steel
Dimensions min. L794 mm
max. L1189 mm
Weight 3.9 kg
Quantity / 90 degree corner 6 pcs
Produc image – C152 Corner Element

Corner Element 2150

Material Zinc coated, galvanized steel
Dimensions L215 x W50/32
Weight 12 kg
Quantity / 90 degree corner 9 pcs
Produc image – C152 Membrane

Poly Liner

Material PVC coated Low Density Polyethylene
Dimensions L33 x W4.5 m - 420 g/m2
Weight 62 kg per roll
Quantity / 90 degree corner 8 m
Produc image – C152 Chain

Chain 5 m x 12 mm galvanized

Material Galvanized Steel DIN763
Dimensions L5 m x 12mm links excluding carabiners
Weight 11.3 kg
Quantity / 90 degree corner 9 m
Produc image – C152 Cable tie

Reusable Cable Tie

Material Nylon
Dimensions L38 cm
Weight 0.001 kg
Quantity / 90 degree corner 16 pcs
Produc image – C152 Sealer clip (1)

Clip

Material Steel
Dimensions L17 cm
Weight 0.08 kg
Quantity / 90 degree corner 3 pcs

C152 Barrier System Setup Manual: Clear, Concise Instructions for Easy Setup.

Our step-by-step instructions are designed to guide you through the process of setting up your system quickly and easily. Even if you're new to the C152, our instructions are straightforward and easy to follow.

While we're confident that anyone can set up the C152 using our manual, we do recommend training and consultation for the best possible outcome. These additional resources can help you optimize your setup and ensure that everything runs smoothly.

Setup manual C152 - Straight section

step1-1

1. Place supports

Place the C152 Barrier Supports 122 cm apart. Use Link Bars to gauge the distance.

If installed on concrete

step2-1

Prepare for concrete anchor

Prepare installation of Concrete Anchor. Drill a hole using a Hammer Drill.

If installed on concrete

step-3

Install concrete anchors

Screw on the Concrete Anchors into the ground. Leave a distance of 1.5 cm between top of the anchor and the bottom beam of the C152 Barrier Supports.

asset-4

2. Erect supports

Erect the C152 Barrier Supports. ❶ Lift the front beam up and ❷❸ unfold the support beams. Slide the inner support beam until it rests against the security axis.

step-5-1

3. Secure upright position

Secure the C152 Barrier supports upright position with the Snap Lock. ❶ Push the protruding rods outward, ❷ then upward, ❸ until they pass through the cut-out.

asset-15

4. Connect supports

❶ Insert the Z-lock on the Link bar into the keyhole cutout on the front beam. ❷ Lower it until the Z-lock rests at the bottom of the cutout.

asset-20

5. Mount panels

Mount the 1071 Aluminum Panels by ❶ sliding the triangular cutout over the Link Bar. ❷ Lower it until the panel hangs on the protruding part.

asset-22-1

6. Roll out membrane

Roll out the 4.5 m wide Geodesign Poly Membrane and secure with two Sealer Clips per section, along the top edge. Ensure that there is between 15-20 cm overlap at the back of the barrier.

asset-25

7. Place and Secure Chain

Connect the chain lengths with karabiners and place them along the membrane's outer edge. ❶ Wrap or lay the chain on the membrane, ❷ thread a cable tie through the pre-punched holes, ❸ and secure the chain.

If installed on concrete

asset-26

Seal Membrane with Tape over Chain

Seal the poly membrane to the ground by applying 20 cm wide sealing tape over both the chain and the membrane edge.

asset-4-1

8. Add and Fasten Garland Chain to Barriers

Hang the garland chain on the inclined part of the barriers. Fasten the chain to the C152 Barrier Supports using the carabiner hook.

asset-31

9. Adjust Membrane and Remove Air Pockets

Adjust the Sealer Clips as water enters the barrier to relax the Poly Membrane. Gently step on the membrane to squeeze out air pockets.

asset-32

10. Fully Installed and Self-Anchored

Installed and self-anchored as rising water presses the barriers to the ground.

Setup manual C152 - Outer corner section

Skärmavbild 2025-09-16 kl. 11.27.38

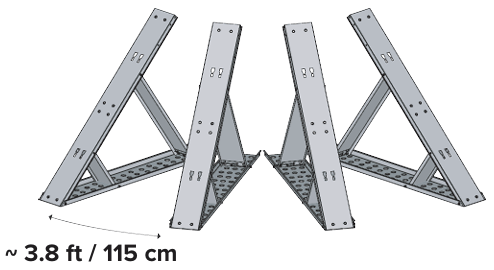

1. Place supports

Place four C60 | C152 metal supports in a 90° arc with approx 3.8 ft / 115 cm apart.

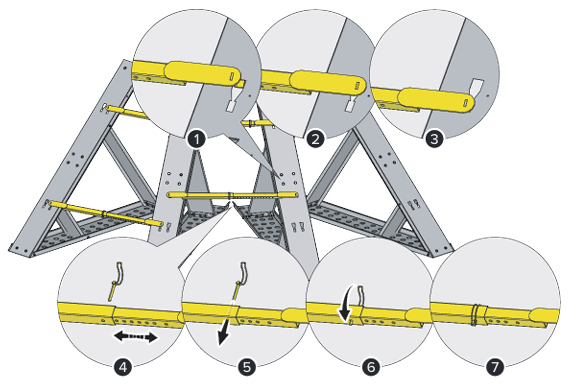

Skärmavbild 2025-09-16 kl. 11.35.42

2. Add Link Bars

Begin connecting the C60 | C152 metal support using adjustable Link Bar Large. Attach the Link Bars through keyhole cut on the C60 | C152 Barrier Support and slide down to lock. Fix the Link Bar at a suitable length with Pin Lock.

Skärmavbild 2025-09-16 kl. 11.43.36

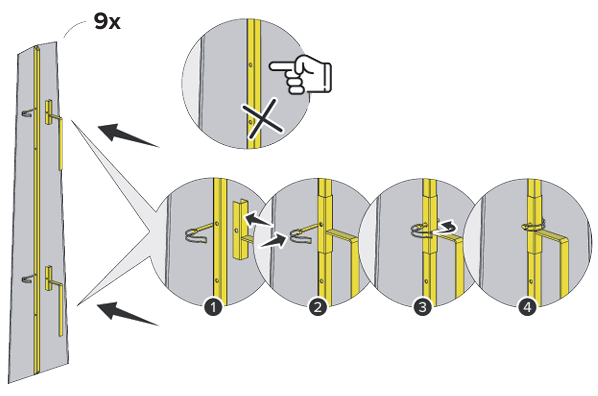

3. Mount Corner Element

Assemble the Corner Element. Make the wide part of the Element point down. Attach the handles and align to the top holes of the Corner Element. Fix using Pin Lock

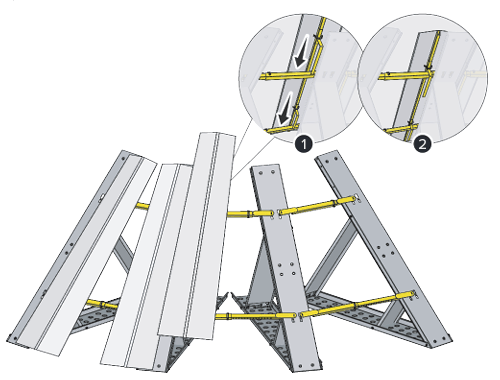

Skärmavbild 2025-09-16 kl. 11.51.01

4. Attach the Corner Elements

Place two Corner Element per section onto the Link Bars. Slide down into position. Leave a gap in between.

Skärmavbild 2025-09-16 kl. 11.53.18

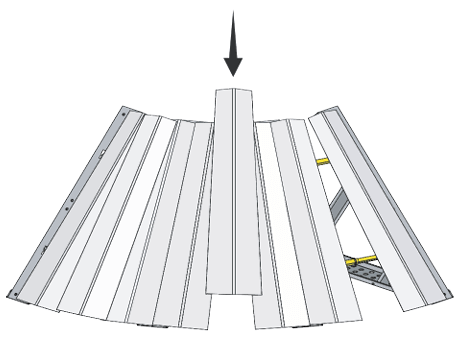

5. Fill the gap

Fill the gap by sliding a third Corner Element on top of the other two.

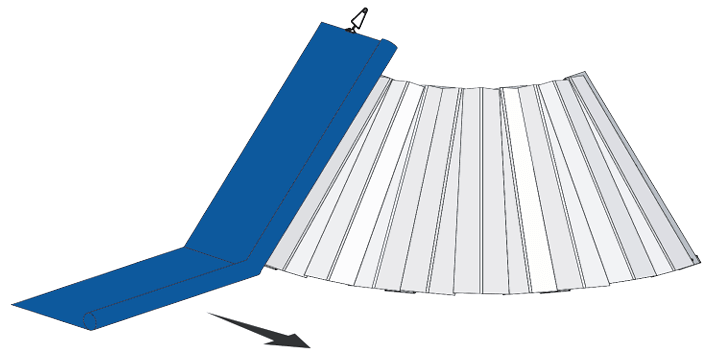

Skärmavbild 2025-09-16 kl. 11.56.33

6. Roll out Membrane

Start rolling out the membrane from the beginning of the arc. Fold over the top by 8 in | 20 cm. Fix the position of the membrane to the C60 | C152 outer corner with a Sealer Clip

Skärmavbild 2025-09-16 kl. 13.47.33

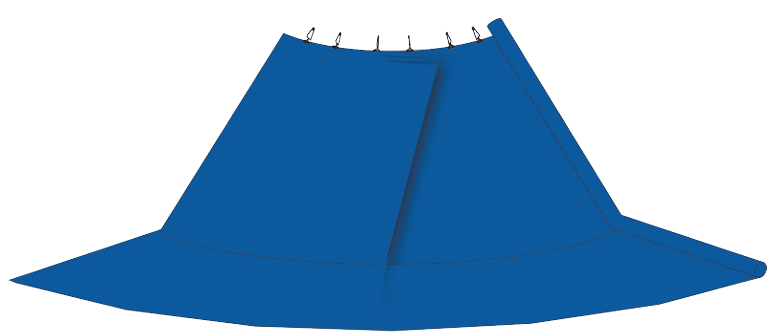

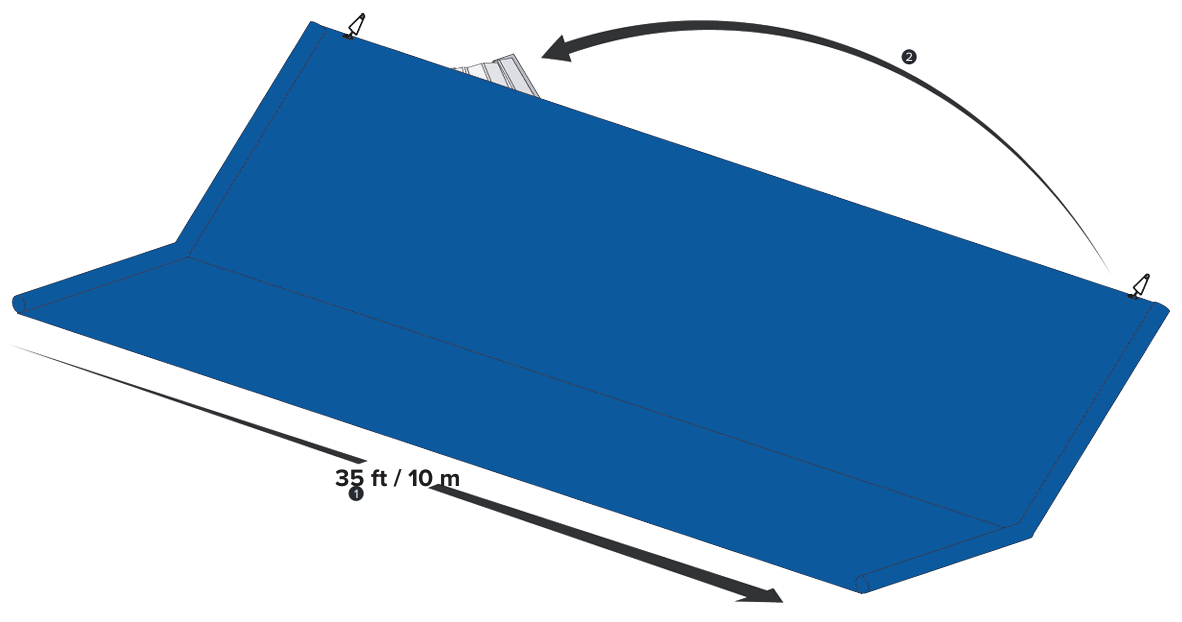

7. Extend Membrane

Extend the membrane 35 ft | 10 m out from the C60 | C152 outer corner. Fold the extended membrane back

Skärmavbild 2025-09-16 kl. 13.50.47

8. Add Sealer Clips

Seal the folded Poly Membrane to the barrier with Sealer Clips.

Setup manual C152 - Adjustable section

Skärmavbild 2025-09-16 kl. 14.10.13

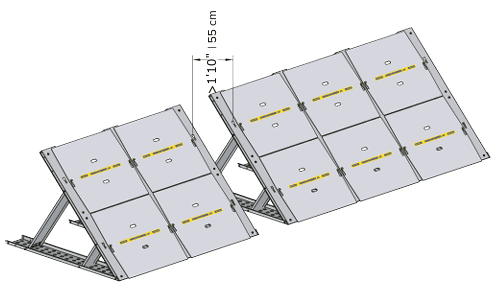

1. Build two barrier lines approaching

Build the two approaching C60 | C152 barriers in a line. Stop when the distance between the barriers is smaller than one full section (4 ft | 121 cm)

Skärmavbild 2025-09-16 kl. 14.12.50

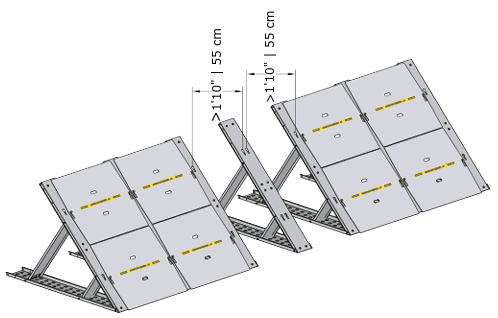

2. Check the distance

If the distance in the previous step is smaller than 1'10" | 55 cm, remove one section. Then create two adjustable sections with equal width.

Skärmavbild 2025-09-16 kl. 14.14.25

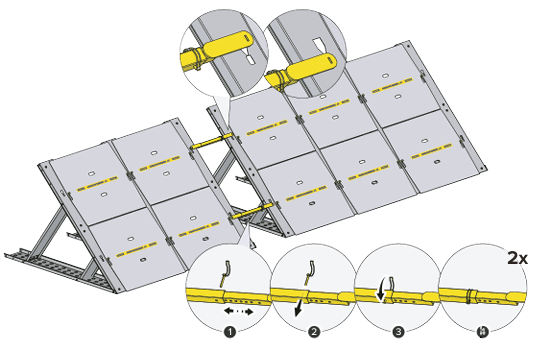

3. Mount adjustable Link Bars

Use adjustable Link Bars to patch the section or sections where the two barrier lines meet.

Skärmavbild 2025-09-16 kl. 14.15.37

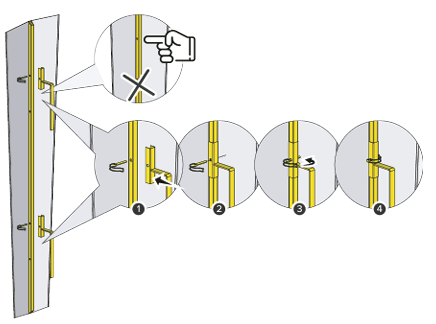

4. Assemble the first Corner Element

Assemble the C60 | C152 Corner Element. Make the narrow part of the Corner Element point down. Attach the handles and align to the top holes of the Corner Element. Fix using Pin Lock.

Skärmavbild 2025-09-16 kl. 14.35.36

5. Add the first Corner Element

Start covering the adjustable section with the C60 | C152 Corner Element. Place it on the adjustable Link Bars with the wide part up and slide down in to position.

Skärmavbild 2025-09-16 kl. 14.38.08

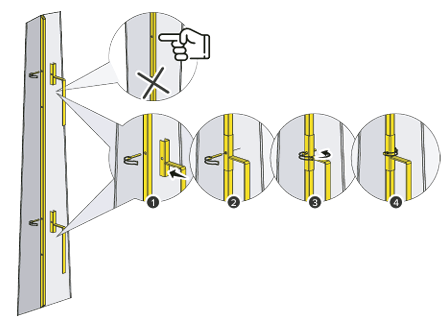

6. Assemble the second Corner Element

Assemble another C60 | C152 Corner Element. This time make the wide part of the Corner Element point down. Attach the handles and align to the top holes of the Corner Element. Fix using Pin Lock.

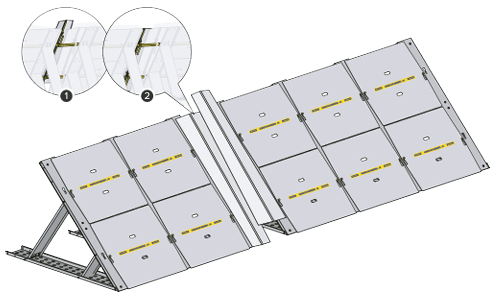

Skärmavbild 2025-09-17 kl. 10.12.27

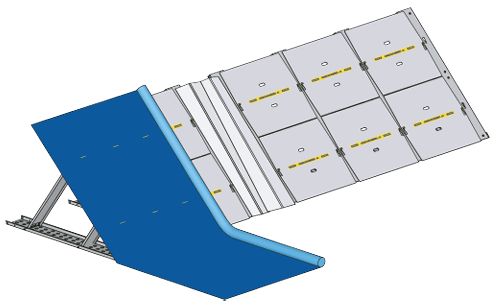

7. Add the second Corner Element

Continue cover the adjustable section with the Corner Element. Place it on the adjustable Link Bars with the narrow part up and slide down in to position. Continue in the same way by alternating the direction of the Corner Element up and down if additional Corner Elements are needed.

Skärmavbild 2025-09-17 kl. 10.15.10

8. Roll out Membrane

Seal the barrier with the included Geodesign Poly Membrane

Skärmavbild 2025-09-17 kl. 10.18.27

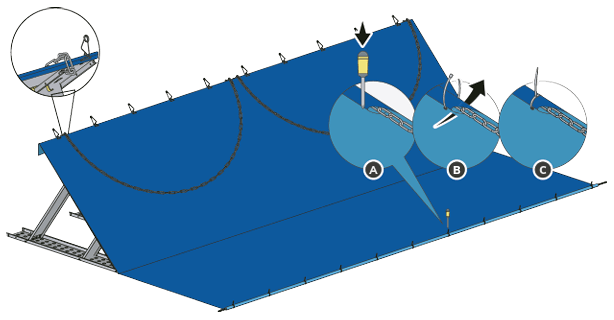

9. Add Sealer Clips and Chain

Fix the Poly Membrane with Sealer Clips. Add Chain length at the bottom. Instructions for enclosing the Chain can be found in standard manual for C60 | C152 Straight section

Setup manual C152 - Wall Batten

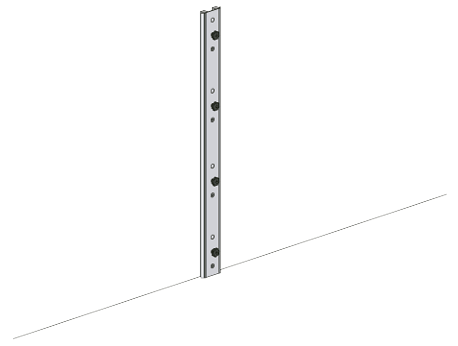

Skärmavbild 2025-09-17 kl. 10.30.09-min

1. Find the right position

Hold the Wall Batten up against the wall in the desired position.

Skärmavbild 2025-09-17 kl. 10.35.47-min

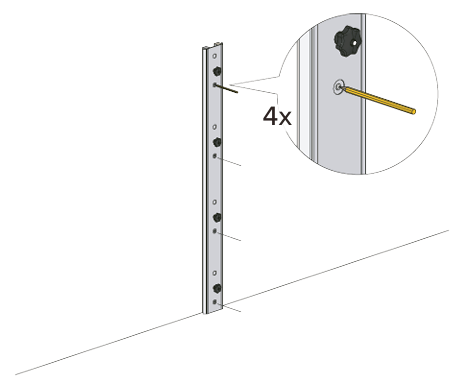

2. Mark the location

Use a pen to make markings on the wall where the holes in the Wall Batten are located.

Skärmavbild 2025-09-17 kl. 10.43.37-min

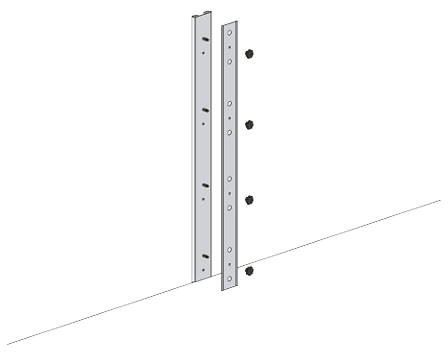

3. Drill holes

Drill holes in the wall and install suitable anchors.

Skärmavbild 2025-09-17 kl. 10.48.36-min

4. Remove top plate

Unscrew the 4 tightening knobs and remove the top plate from the Wall Batten.

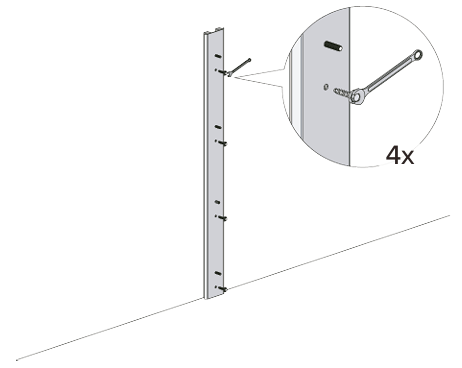

Skärmavbild 2025-09-17 kl. 10.52.44-min

5. Mount Wall Batten

Mount the base batten to the pre drilled holes in the wall using appropriate screws, washers, nuts and bolts to your specific wall.

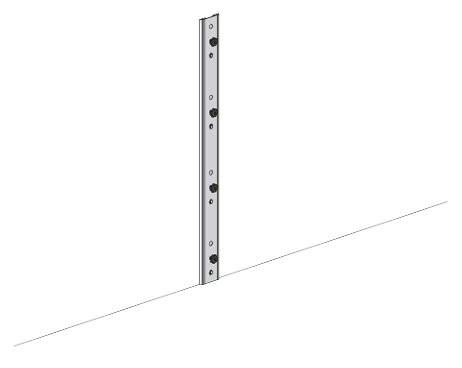

Skärmavbild 2025-09-17 kl. 10.54.16-min

6. Put the plate back

Put the top plate and the 4 tightening knobs back. Wall Batten installed.

Setup manual C152 - Connection to wall

Skärmavbild 2025-09-17 kl. 10.56.36-min

1. Stop the barrier line

As the barrier line approaches the wall, stop at a distance of a few section’s lengths from the wall.

Skärmavbild 2025-09-17 kl. 11.00.12-min

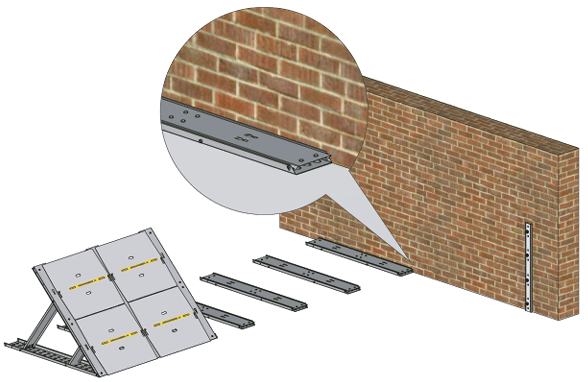

2. Place the support close to the wall

Place the support in line with the barrier, parallel to the wall, as close to it as possible.

Skärmavbild 2025-09-17 kl. 11.07.42-min

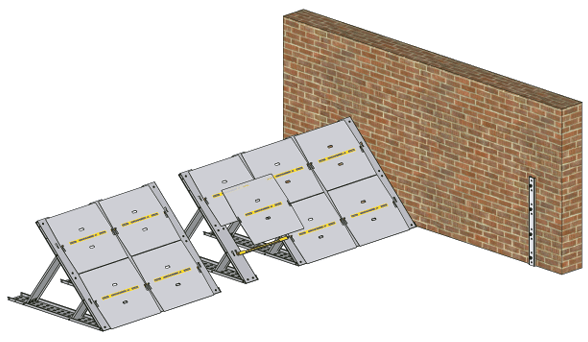

3. Build the barrier from the wall

Start assembling the barrier from the wall towards the already assembled barrier leading up to the wall.

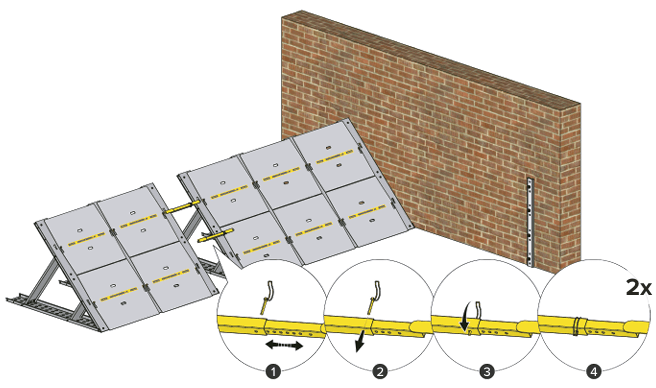

Skärmavbild 2025-09-17 kl. 11.10.49-min

4. Add Adjustable Link Bars

Use adjustable link bars to patch the section where the two barrier lines meet.

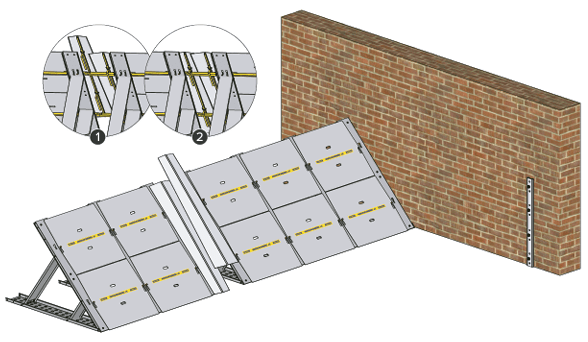

Skärmavbild 2025-09-17 kl. 11.12.26-min

5. Add Corner Elements

Cover the adjustable section with Corner Elements. Place them on the adjustable Link Bars and slide down to position. See more detailed instructions in the manual for Adjustable Sections.

Skärmavbild 2025-09-17 kl. 11.25.27-min

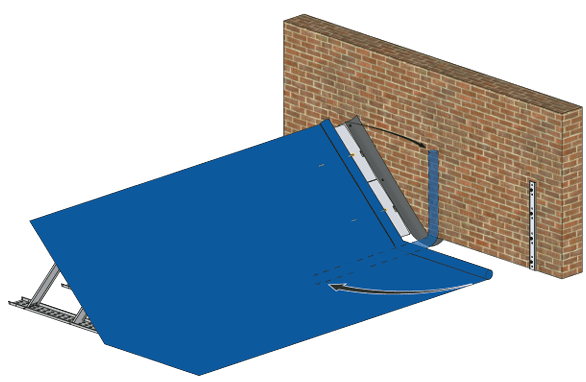

6. Mount Wall Connection Pad

Mount the Wall Connection Pad to the front of the Support beam to bridge the gap to the wall. Align the holes in the pad with the round collared holes on the support and secure with the grip knob and three armed wing nut.

Skärmavbild 2025-09-17 kl. 11.29.25-min

7. Roll out Membrane

Seal the barrier with the included Geodesign Poly Membrane all the way up to the wall. Rotate the membrane length 90 degrees.

Skärmavbild 2025-09-17 kl. 11.30.59-min

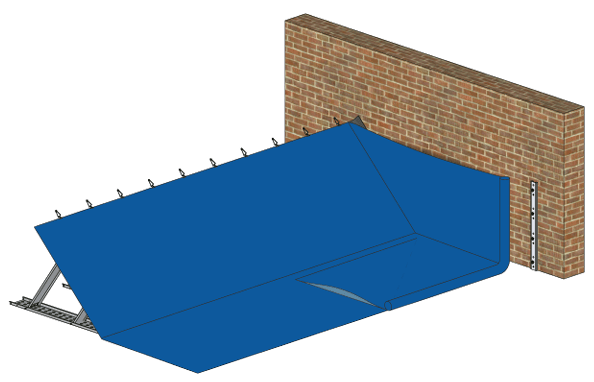

8. Adjust corner

Fold the abundant Poly Membrane in the corner according to the figure

Skärmavbild 2025-09-17 kl. 11.32.22-min

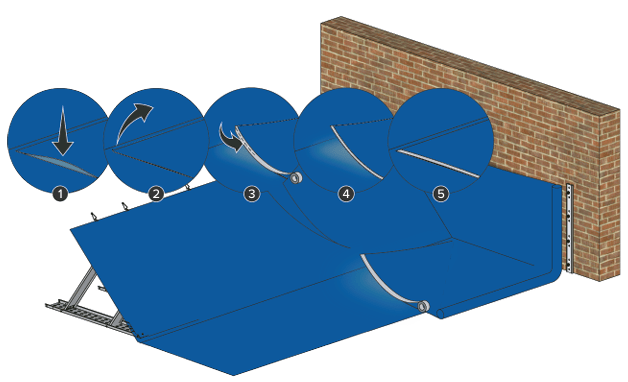

9. Seal Membrane

Seal the folded Poly Membrane with duct tape. Lift up the folded corner and tape around the opening.

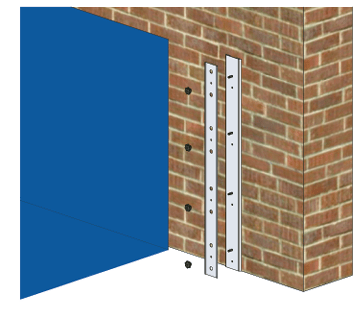

Skärmavbild 2025-09-17 kl. 11.35.14-min

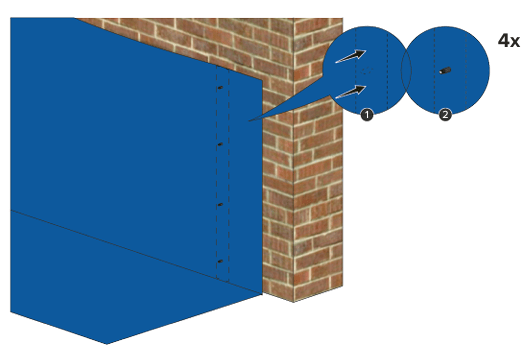

10. Open Wall Batten

Detach the top plate of the Wall Batten by unscrewing the four tightening knobs

Skärmavbild 2025-09-17 kl. 11.36.45-min

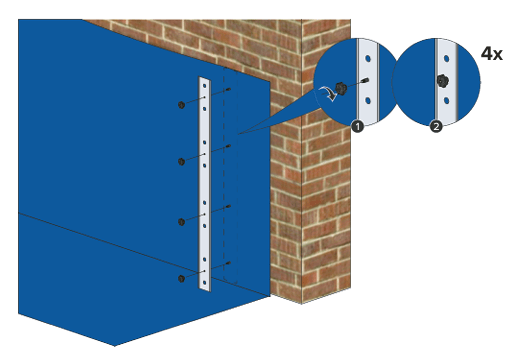

11. Attach Membrane

Attach the Poly Membrane to the Wall Batten by piercing it with the four studs. Let the membrane pass the Wall Batten by at least 4 in | 10 cm and allow the top of the membrane to hang loosely between the Wall Batten and the barrier.

Skärmavbild 2025-09-17 kl. 11.38.04-min

12. Add top plate

Reattach the top plate on top of the Poly Membrane with the four tightening knobs.

Skärmavbild 2025-09-17 kl. 11.40.00-min

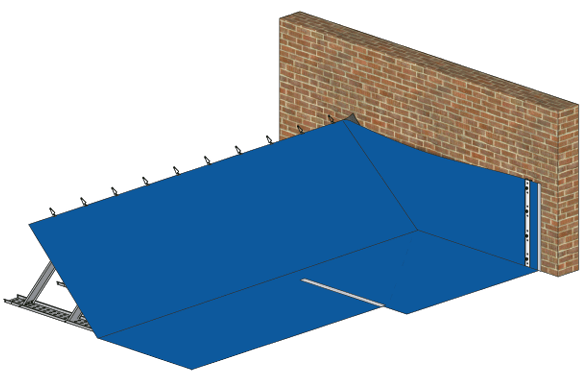

13. Installed

Installed!

Setup manual C152 - Overlap to new Membrane

Skärmavbild 2025-09-17 kl. 11.42.39-min

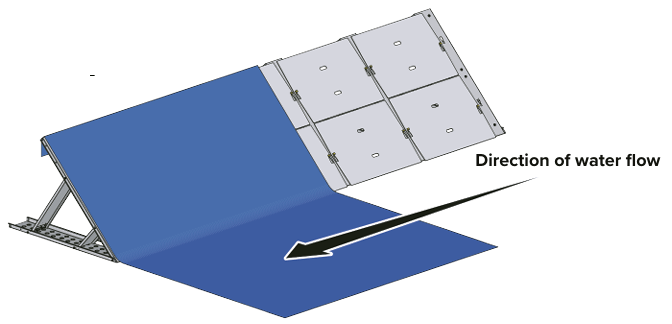

1. Roll out Membrane

Roll out the the previous Poly Membrane completely.

Skärmavbild 2025-09-17 kl. 11.45.18-min

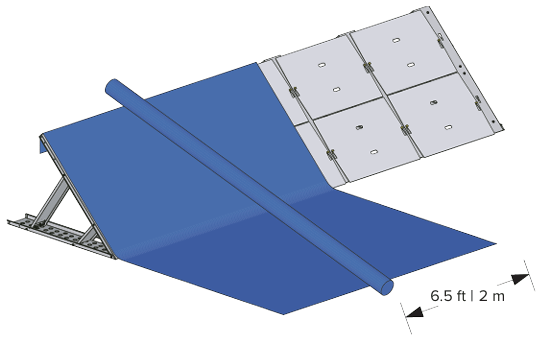

2. Overlap Membranes

Start to roll out the new Poly Membrane in the same direction. The two membranes should overlap with at least 6.5 ft | 2 m.

Skärmavbild 2025-09-17 kl. 11.47.16

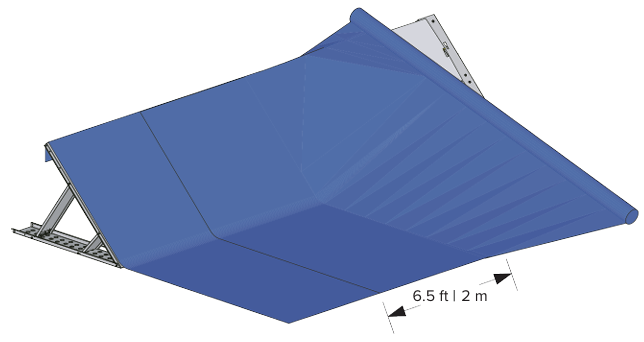

3. Continue to roll out the Membrane

Continue to roll out the Poly Membrane. Make sure the overlap stays 6.5 ft | 2m.

Skärmavbild 2025-09-17 kl. 11.50.35

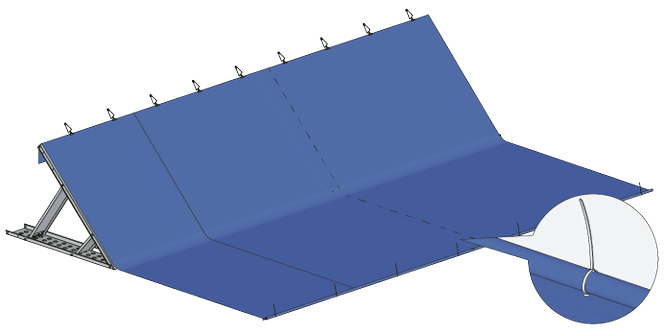

4. Add Sealer Clips and Chains

Place Sealer Clips at the top edge of the barrier. Place the Chain on the outer edge of the Poly Membrane and wrap it. Secure the embedded Chain using Cable Ties – one every 3 ft | 1 m. More detailed instructions can be found in the Setup Manual for straight sections.

Skärmavbild 2025-09-17 kl. 11.56.36-min

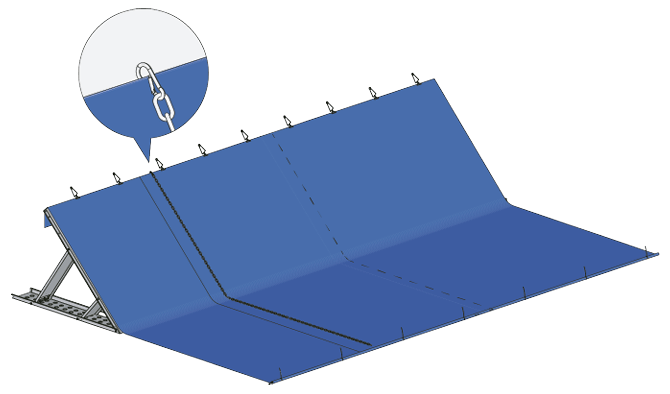

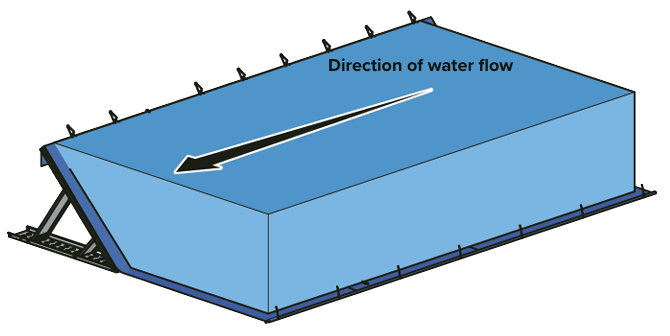

5. Add Chain

Place a vertical loading chain at the beginning of the new Poly Membrane to keep it down. Hang it on to the top edge of the barrier using the carabiner.

Skärmavbild 2025-09-17 kl. 12.00.49-min

6. Installed

Installed!

Setup manual C152 - Seam Membranes

Skärmavbild 2025-09-17 kl. 12.02.41-min

1. Lift up ends

Lift up the ends of both Poly Membranes approximately 6 in | 15 cm.

Skärmavbild 2025-09-17 kl. 12.04.55-min

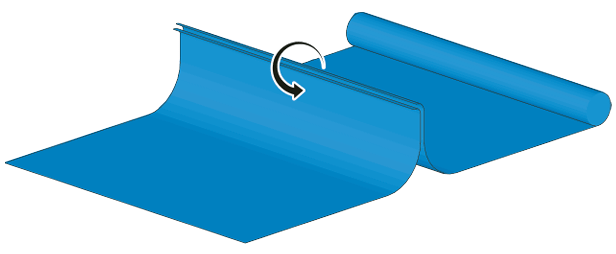

2. Seam Membranes

Hold the membranes together and align the edges. Seam the membranes by rolling them down.

Skärmavbild 2025-09-17 kl. 12.06.51-min

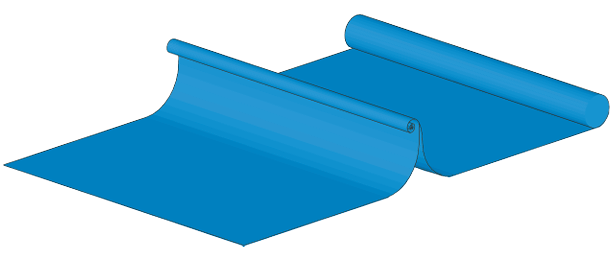

3. Create a roll

Continue creating a roll. Make it as tight as possible.

Skärmavbild 2025-09-17 kl. 12.08.34-min

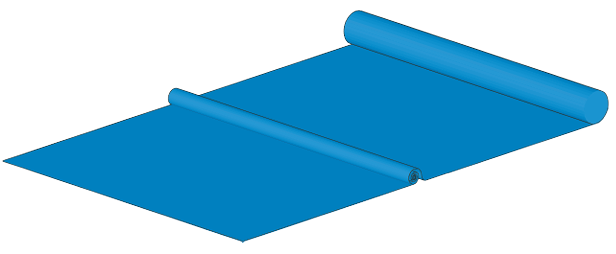

4. Roll it to the ground

Roll it all the way down to the ground.

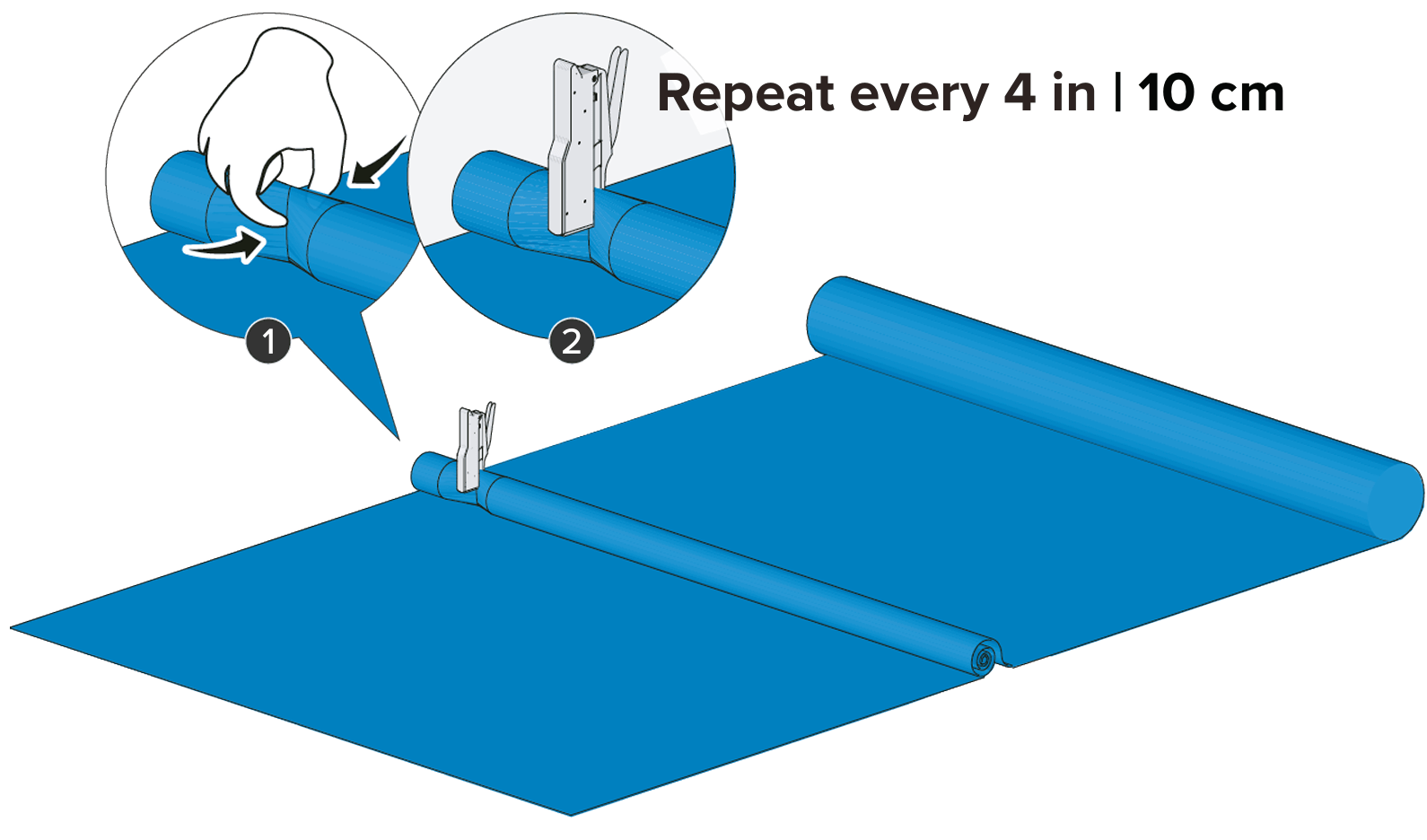

5. Staple roll

Pinch the roll with your fingers. Slide the stapler around it and staple the roll together. Repeat every 4 in | 10 cm along the roll.

Skärmavbild 2025-09-17 kl. 12.10.57-min

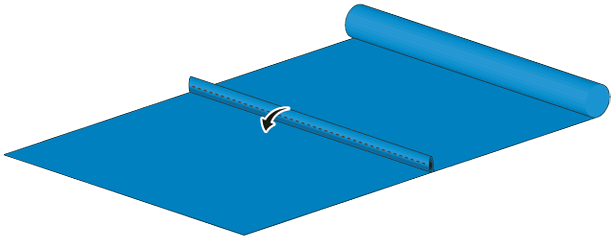

6. Fold roll down

Optional: Fold down the stapled roll.

Skärmavbild 2025-09-17 kl. 12.12.25-min

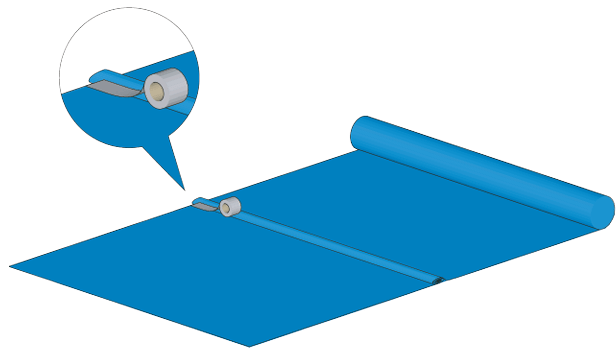

7. Tape roll

Optional: Tape the roll down to minimize seepage. Tape a second parallel line if necessary.

Skärmavbild 2025-09-17 kl. 12.13.48-min

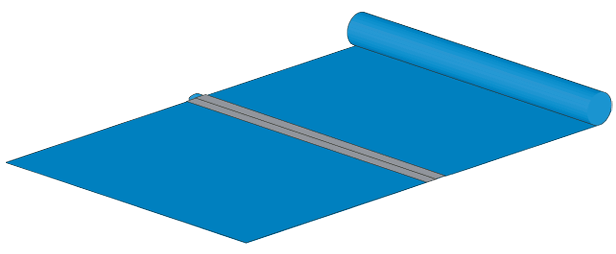

8. Done

Done!

Weatherproof, Stackable Metal Crates forStorage

The C152 Heavy Duty System is shipped in durable, weatherproof metal crates designed for both delivery and long-term storage. Each crate is covered with a PVC hood to keep the contents dry and dust-free. These stackable crates are designed for space-efficient storage and can be easily moved with a manual forklift, offering flexible handling on-site.

Heavy-Duty-storage_0002_Alu-crate

Multi Crate -
Alu Sheets

Material Galvanized Steel
Dimensions L1.4 x W1.15 x H0.88 m
Weight 1550 kg
Quantity /
crate
90 alu sheets
Heavy-Duty-storage_0001_Support-Crate

Support Crate C152

Material Galvanized Steel
Dimensions L2.4 x W1.15 x H1.2 m
Weight 1220 kg
Quantity /
crate
39 supports
Heavy-Duty-storage_0000_Combi-Crate

Multi Crate - Components

Material Galvanized Steel
Dimensions L1.4 x W1.15 x H0.88 m
Weight 750 kg
Quantity /
crate
Remaining components

Complete 400-meter C152 Heavy Duty flood protectionin a single 20-foot container.

The C152 Heavy Duty system is efficiently packed in durable, stackable metal crates, all fitting neatly into a 20-foot container. This compact solution offers convenient storage and strategic placement, ensuring fast access and rapid deployment when needed. Simply position the container where it's required—no additional storage space is necessary.

C152 – Container (3)
Combi crate: 14 units
C152 support crate: 9 units
Membrane shelf 1 unit

Discover how the C152 Heavy Duty Barrier can be your trusted solution for flood protection. Contact us today for expert guidance and a personalized quote tailored to your needs.

Request Your Quote Now
