The C152 is a model within our Heavy Duty product range, featuring the same stable, robust, and durable construction as the other flood barriers in the series. With only two aluminum sheets and two connection rods required per section, the C152 is an incredibly efficient system for achieving an impressive 152 cm dam height in a short time.
Dam height
152 cm
Section width
C/C
122 cm
Deployment time
(100 m / 6 people)
55 min
Footprint
(Barrier and membrane)
4.4 m
Introducing the C152 Heavy Duty flood barrier, one of five models in our Heavy Duty series. Like its siblings, the C152 features a triangular metal support that folds out and is connected with two connection rods. Aluminum sheets are hung on the connection rods, and the barrier is covered with a laminate-coated high-density polyethylene membrane to create a seal against the ground.
As with all Geodesign Barriers, the C152 can be set up without any tools, machinery, or groundwork. The water pressure pushes the barrier into the ground and makes it self-anchoring.
The C152 uses only two aluminum sheets and two connection rods, similar to the C122. However, with a larger aluminum sheets, the C152 achieves an impressive dam height of 152 cm. The barrier strikes an optimized balance between height and speed, providing quick and efficient protection against flooding.
| Barrier footprint without membrane (A) | 218 cm |
| Maximum Water Column / Dam height (B) | 152 cm |
| Section Width (C) | 122 cm |
| Inclined Length (D) |
216 cm |
| Aluminum sheet height (E) | 107 cm |
| Membrane ground length (F) | 214 cm |
| Membrane width (F+D+20 cm) | 450 cm |
| Installation footprint (A+F) | 432 cm |
| Maximum Water Column / Dam height (A) | 152 cm |
| Set up time 100 metres by 6 workers | 55 min |
| Certifications | FM Approval ANSI 2510-2020 |
| Section Weight | 78.4 kg |
| Water Flow Resistance | 4 m/s |
| Extendable | +15 cm or +61 cm to C213 |
| Factor of safety | 1.5 |
| Load / section | 19.63 kN |
| Material | High Strength low alloy steel |
| Dimensions | L219 x W32 x D6.5 cm |
| Weight | 29 kg |
| Quantity / section | 1 pc |
| Material | High-strength steel |
| Dimensions | L122 x W5 x D7 cm |
| Weight | 3 kg |
| Quantity / section | 2 pcs |
| Material | Aluminium Checker Plate |
| Dimensions | L120 x W107 x T0.7 cm |
| Weight | 17 kg |
| Quantity / section | 2 pcs |
| Material | PVC coated Low Density Polyethylene |
| Dimensions | L33 x W4.5 m - 420 g/m2 |
| Weight | 62 kg per roll |
| Quantity / section | 1.2 m / 0.037 roll |
| Material | Galvanized Steel DIN763 |
| Dimensions | L5 m x 12mm links excluding carabiners |
| Weight | 11.3 kg |
| Quantity / section | 3 m / 0.58 pcs |
| Material | Nylon |
| Dimensions | L38 cm |
| Weight | 0.001 kg |
| Quantity / section | 2 pcs |
| Material | High Strength low alloy steel |
| Dimensions | L97 x W12.5 cm |
| Weight | 3.75 kg |
| Quantity / section | 1 pc |
The C152 Heavy Duty flood barrier offers maximum flexibility with the ability to turn in 15-degree increments. Our innovative design utilizes adjustable connection rods and specially designed corner elements to allow for quick and easy assembly of hearing sections.
Not only can the C152 Heavy Duty barrier be built to suit a variety of angles, but our specially designed corner elements can be used for both outer and inner turns, making the process even more streamlined.
| Maximum Water Column / Dam height (A) | 152 cm |
| Set up time 90 degrees by 6 workers | 55 min |
| Section Weight | 78.4 kg |
| Turning radius / section | 15 degree |
| Extendable | No |
| Upper arc length (A) | 250 cm |
| Lower arc length (B) | 470 cm |
| Membrane length (C) | 805 cm |
| Turning radius | 515 cm |
| Sealer clips | 9 |
| Turning radius (G) | 340 cm |
| Lower inner arc length (F) | 180 cm |
| Lower outer arc length (E) | 530 cm |
| Upper arc length (D) | 420 cm |
| Membrane length | 420 m |
| Sealer clips | 6 |
| Material | High Strength low alloy steel |
| Dimensions | L219 x W32 x D6.5 cm |
| Weight | 29 kg |
| Quantity / 90 degree corner | 3 pcs |
| Material | High Strength steel |
| Dimensions | min. L794 mm max. L1189 mm |
| Weight | 3.9 kg |
| Quantity / 90 degree corner | 6 pcs |
| Material | Zinc coated, galvanized steel |
| Dimensions | L215 x W50/32 |
| Weight | 12 kg |
| Quantity / 90 degree corner | 9 pcs |
| Material | PVC coated Low Density Polyethylene |
| Dimensions | L33 x W4.5 m - 420 g/m2 |
| Weight | 62 kg per roll |
| Quantity / 90 degree corner | 8 m |
| Material | Galvanized Steel DIN763 |
| Dimensions | L5 m x 12mm links excluding carabiners |
| Weight | 11.3 kg |
| Quantity / 90 degree corner | 9 m |
| Material | Nylon |
| Dimensions | L38 cm |
| Weight | 0.001 kg |
| Quantity / 90 degree corner | 16 pcs |
| Material | Steel |
| Dimensions | L17 cm |
| Weight | 0.08 kg |
| Quantity / 90 degree corner | 3 pcs |
Our step-by-step instructions are designed to guide you through the process of setting up your system quickly and easily. Even if you're new to the C152, our instructions are straightforward and easy to follow.
While we're confident that anyone can set up the C152 using our manual, we do recommend training and consultation for the best possible outcome. These additional resources can help you optimize your setup and ensure that everything runs smoothly.

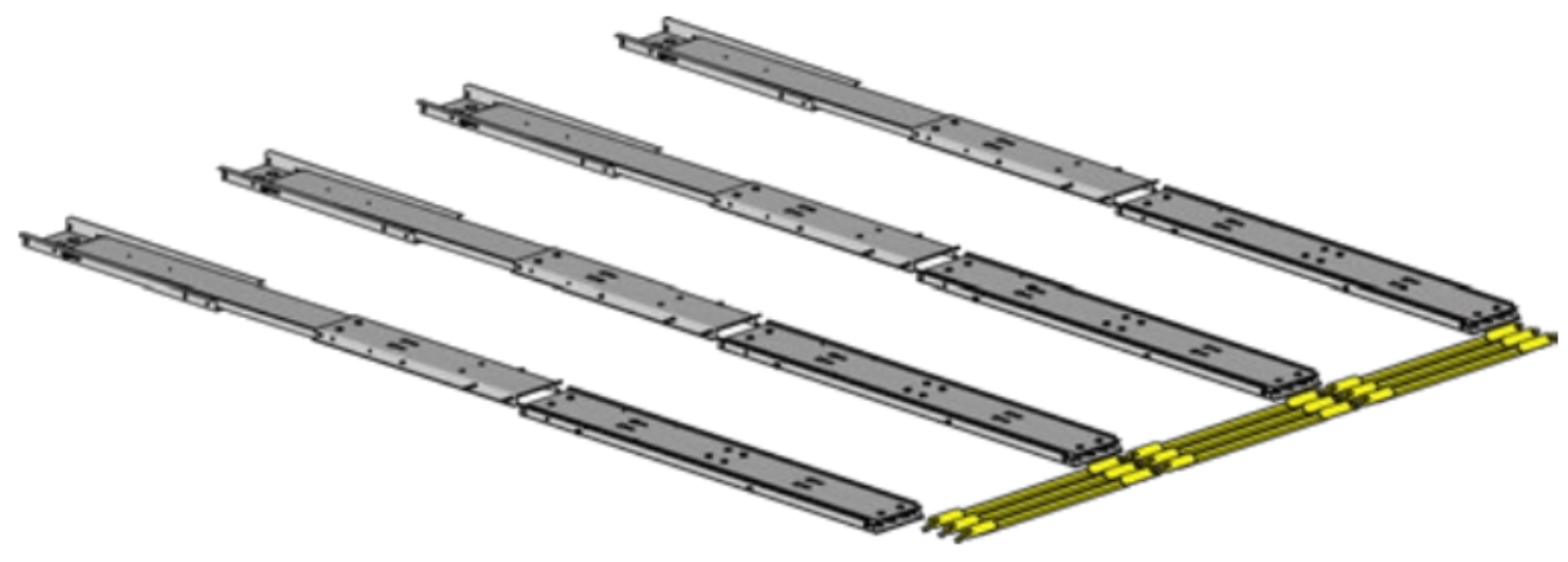

Place the C60 | C152 Barrier Supports and C84 | C213 Barrier Extensions 4 ft / 122 cm apart. Use Link Bars to gauge the distance.

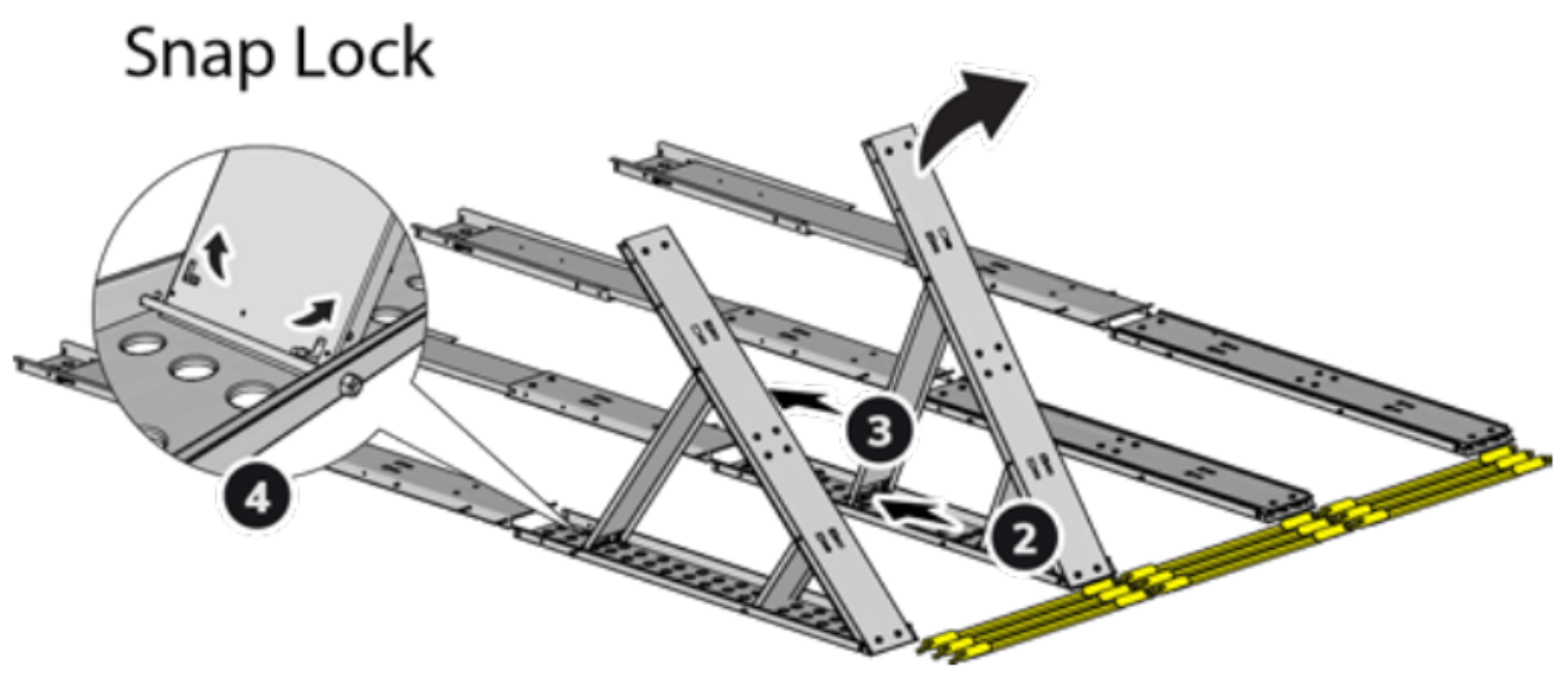

Erect the C60 | C152 Barrier Supports. Lift the front beam up and unfold the support beams. Secure upright position using the Snap Lock on the support beam.

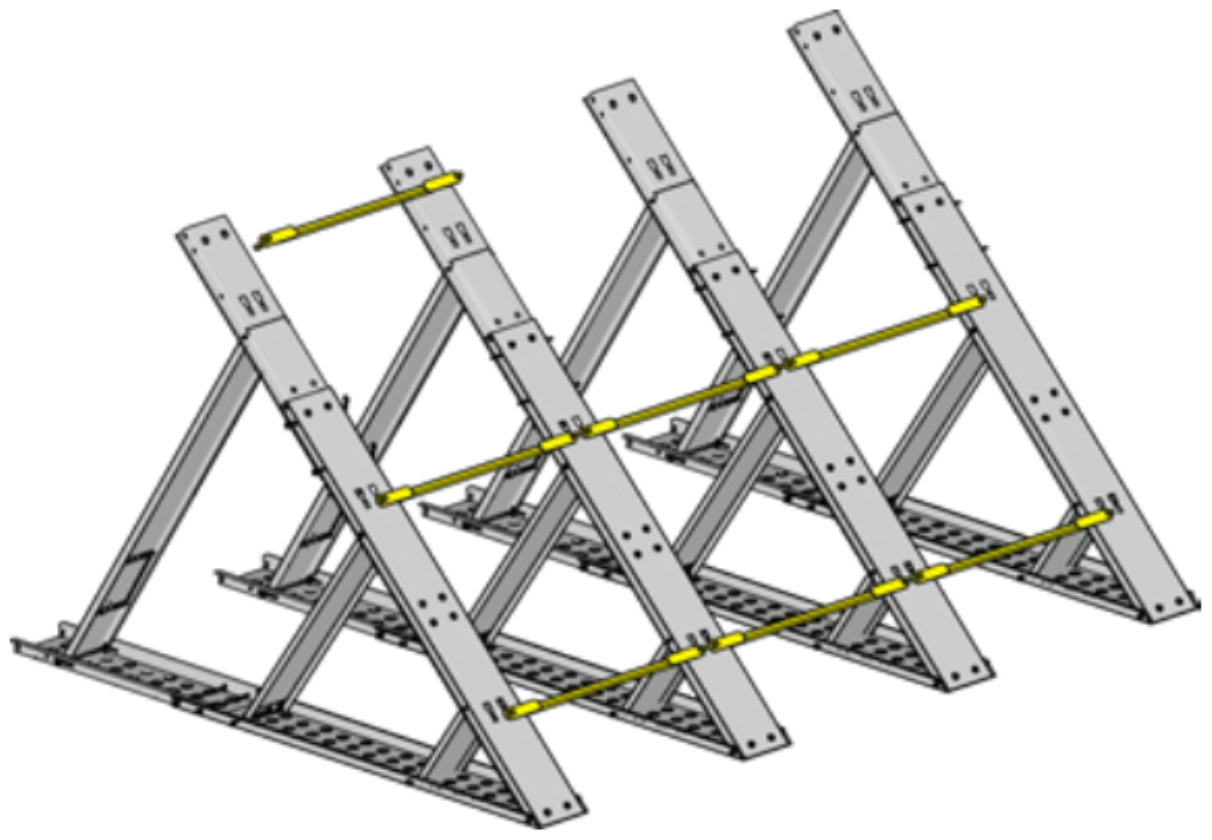

Connect the C60 | C152 Barrier Supports using Link Bars.
Erect the C84 | C213 Barrier Extension. Lift the support beam up and push the Extension in place from behind.
Secure the C84 | C213 Barrier Extension to C60 | C152 Barrier Support using the 4 Security Rods placed on the inside of the support beam of the extension.
If installed on concrete

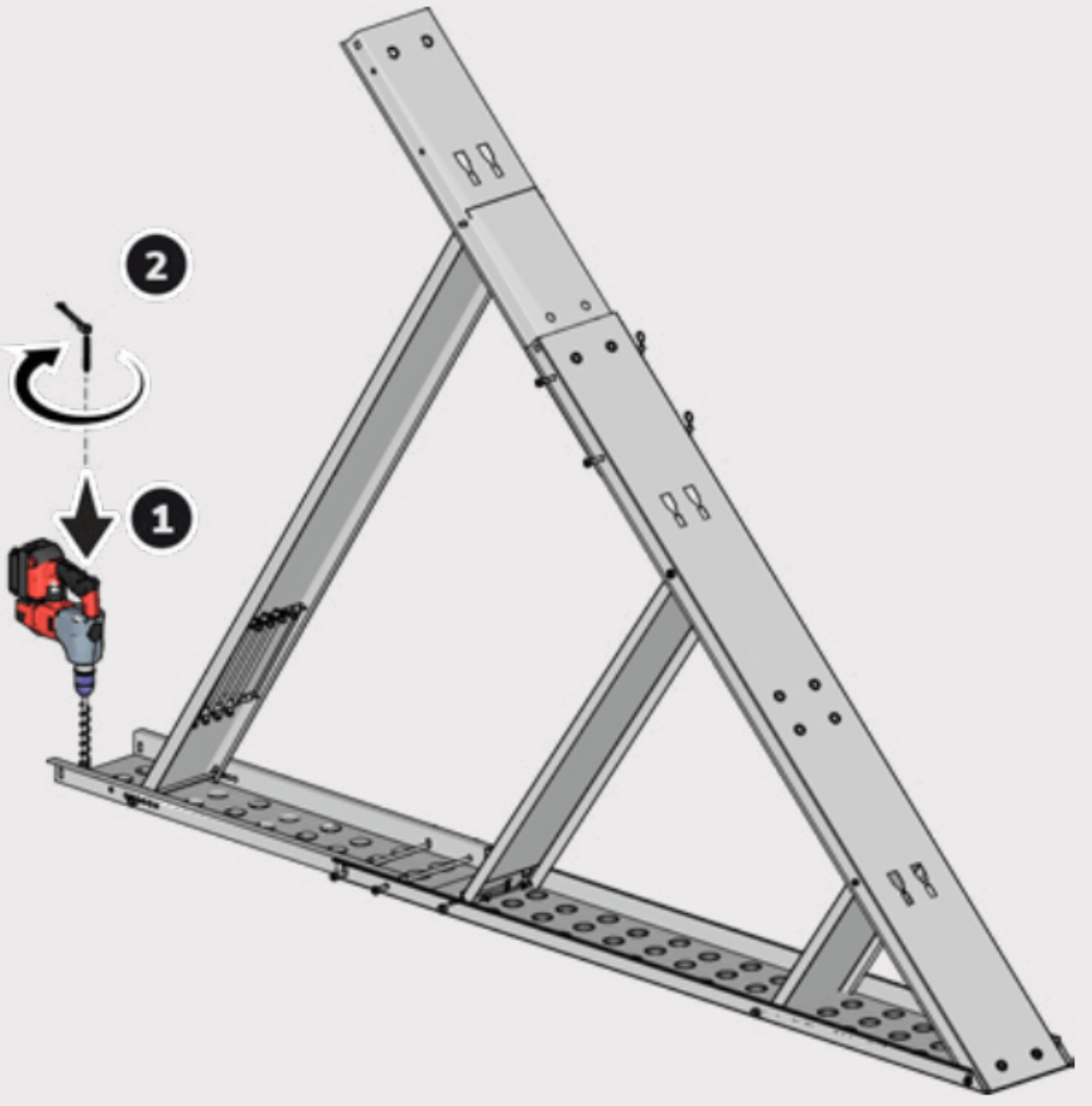

Drill a hole using a Hammer drill. Screw on the Concrete Anchors into the ground. Leave a distance of 1/2 in / 1.5 cm between top of the Concrete Anchor and the bottom beam.
Connect the C84 | C1213 Barrier Extensions using Link Bars.
Mount the Alu Panel 860 onto the top row of Link Bars by sliding the key hole cut out over the protruding part of the Link Bar.
Mount the Alu Panels 1071 onto the middle and bottom row of Link Bars by sliding the key hole cut out over the protruding part of the Link Bar.

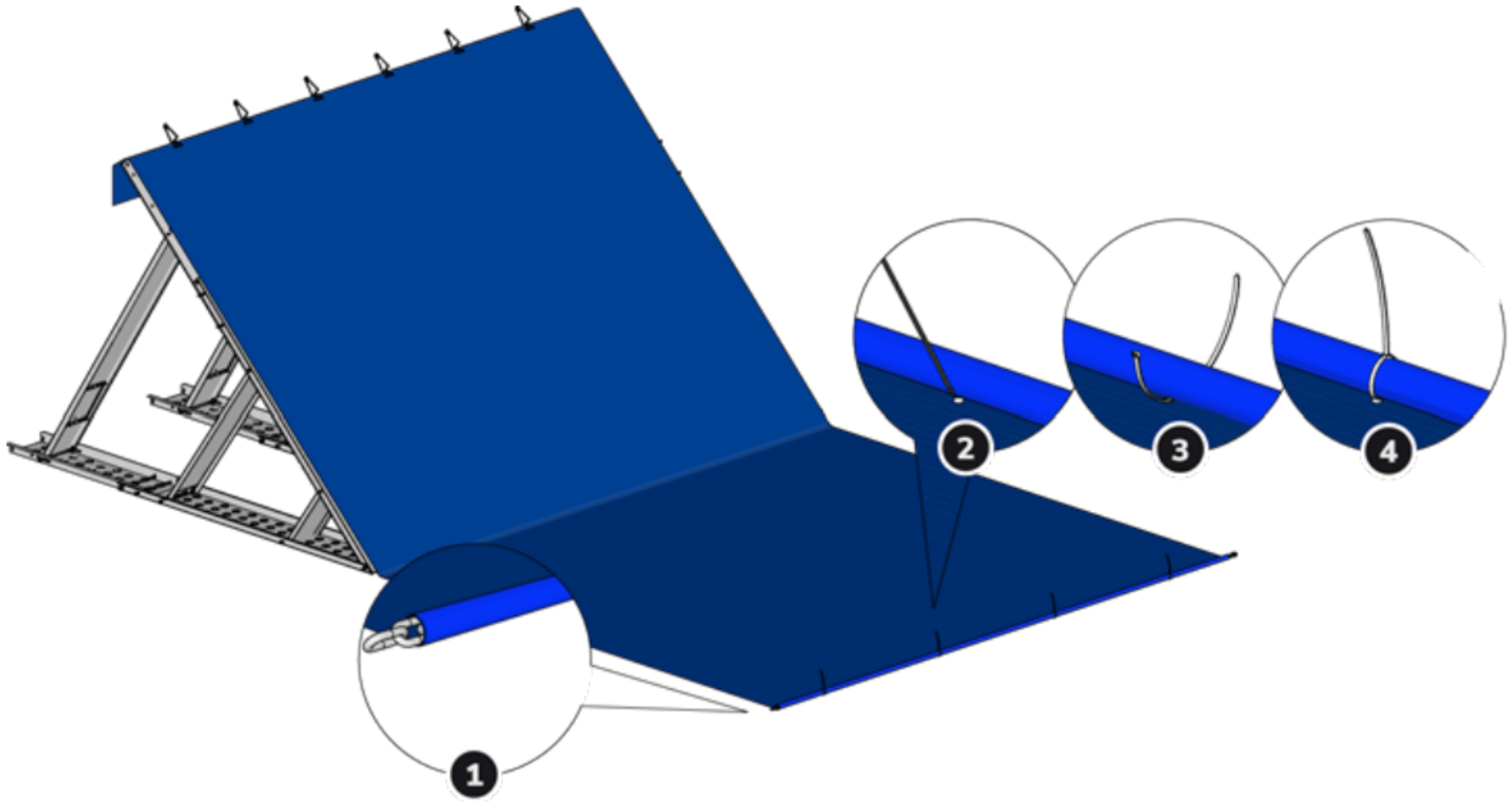

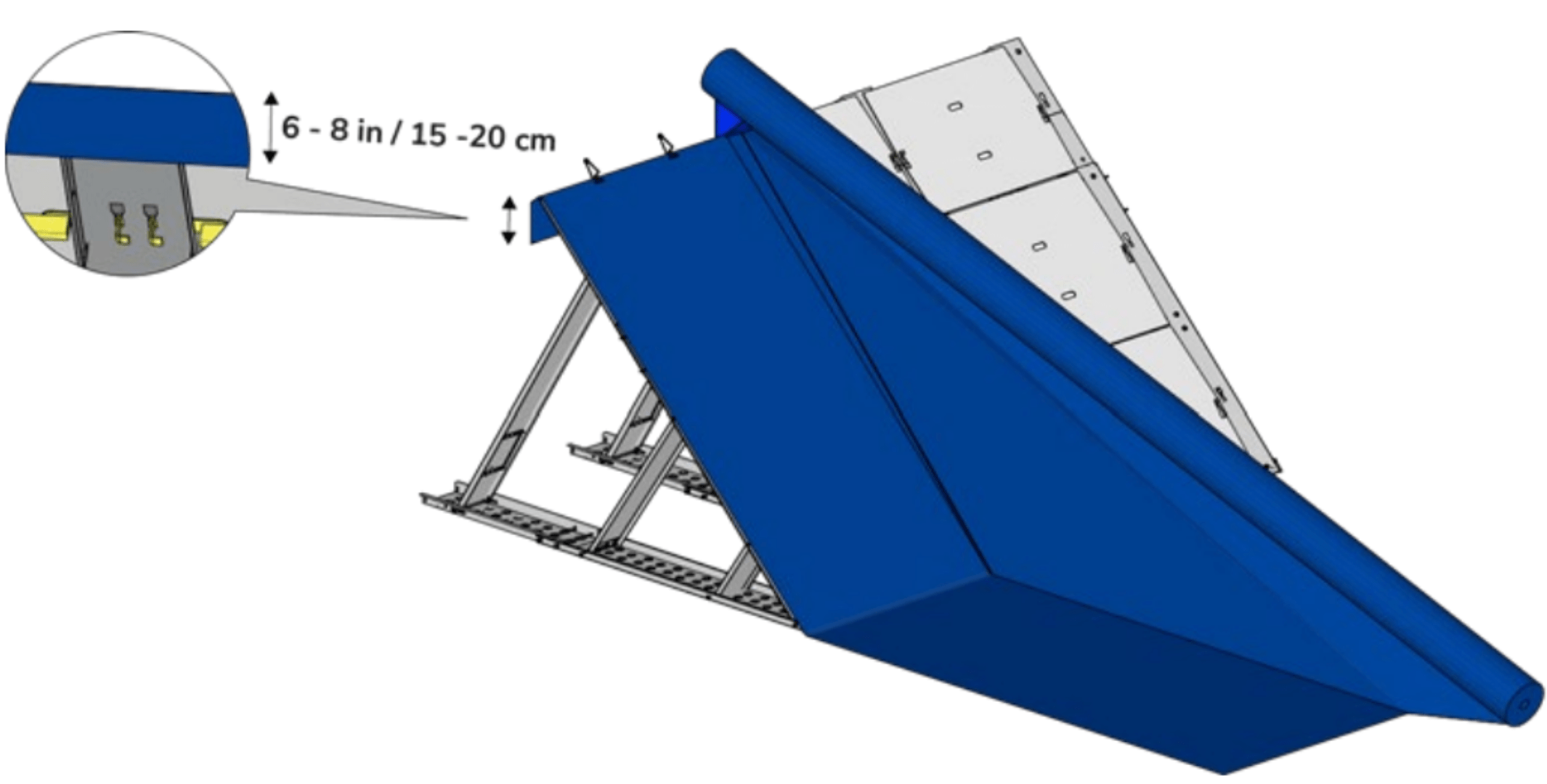

Roll out the Poly Membrane and secure with two Sealer Clips per section, along the top edge. Ensure that there is between 6 - 8 in / 15 - 20 cm overlap at the back of the Barrier.

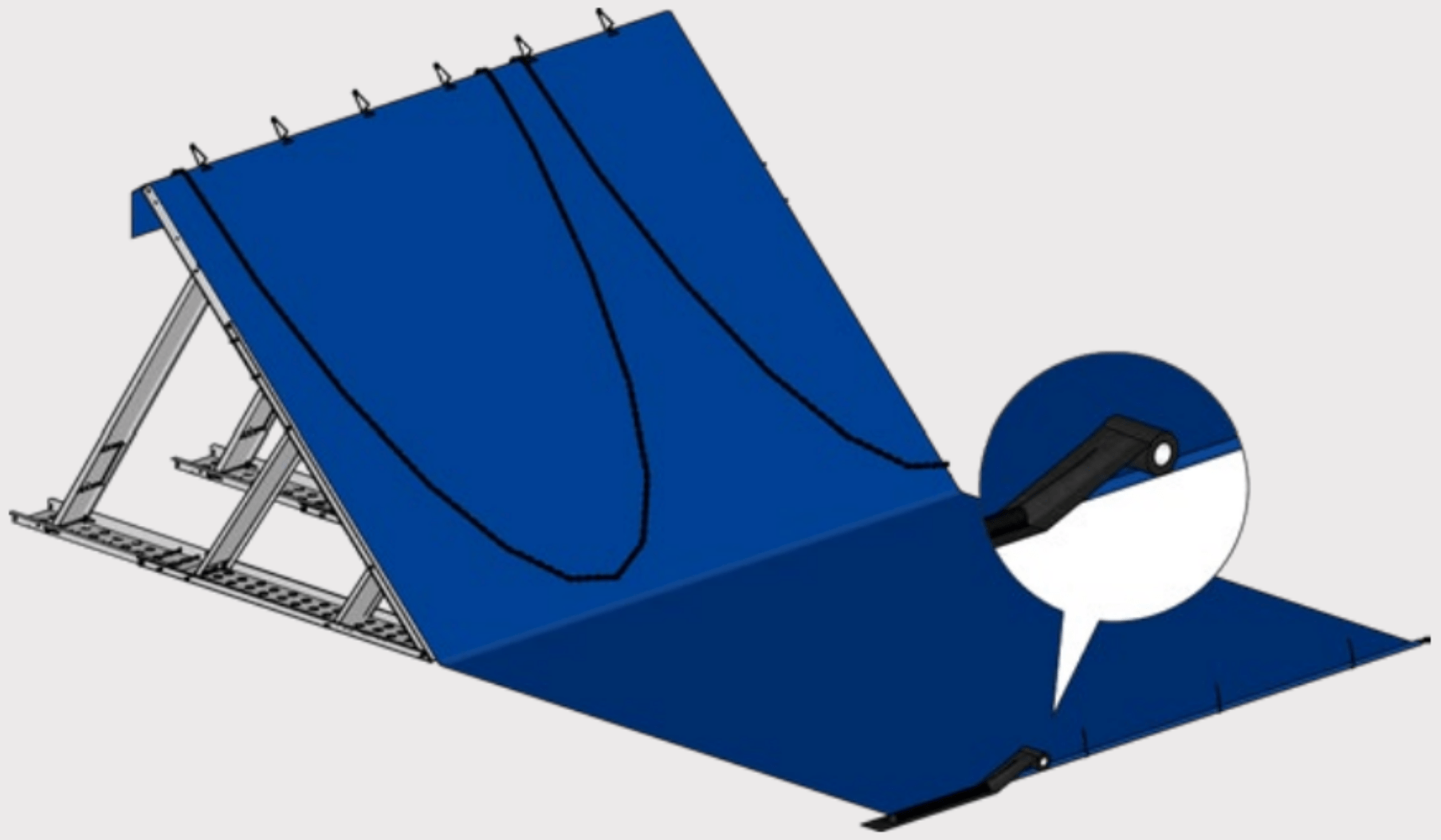

Connect the Chain lengths with the carabiners and place them along the outer edge of the Poly Membrane. Wrap the Chain in the Poly Membrane – no more than 2 turns. Secure the wrapped Chain with Cable Ties using the small holes in the Poly Membrane – one every 3.28 ft / 1 m.

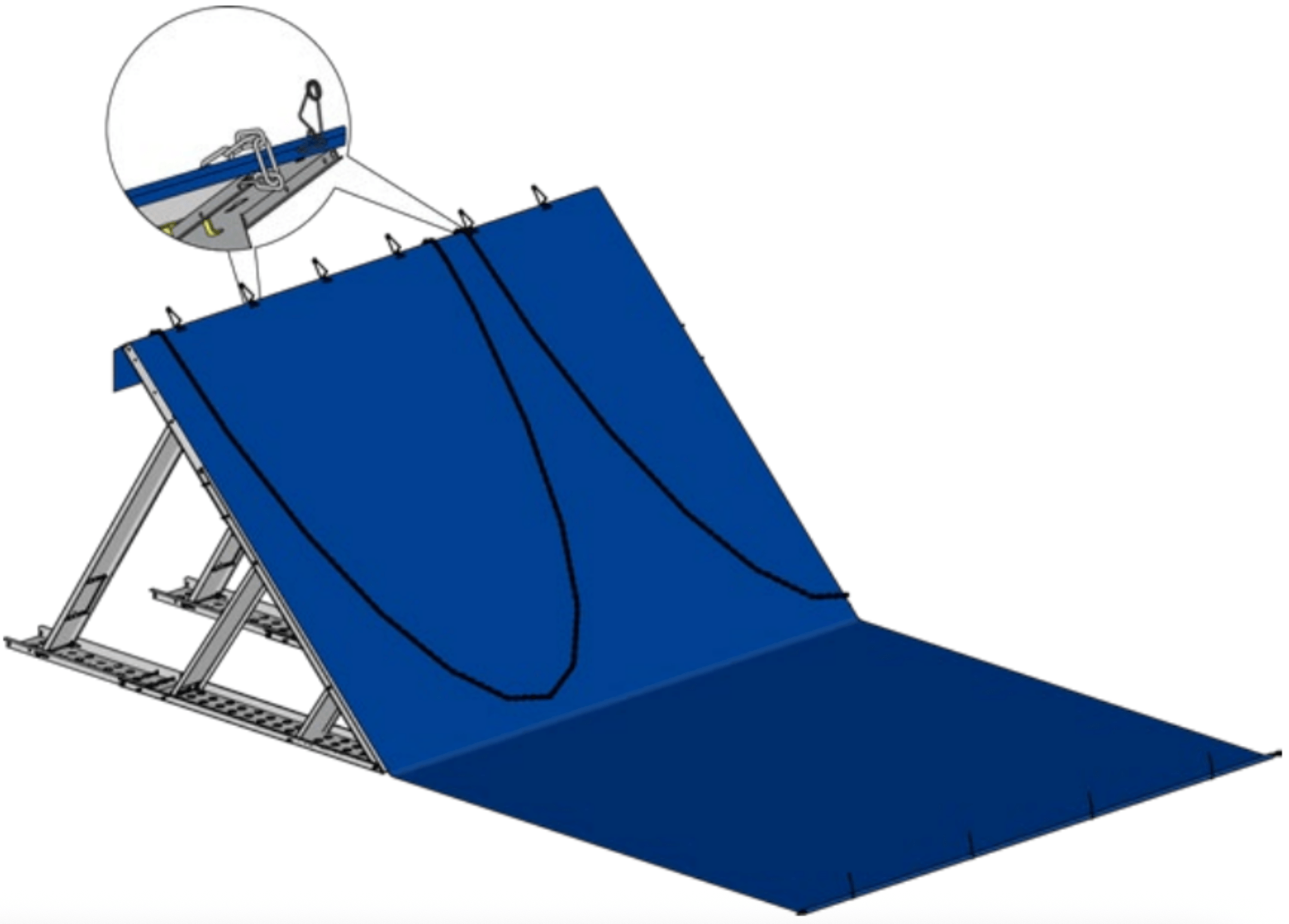

Hang the garland Chain on to the inclined part of the Barriers. Use the carabiner hook to secure the Chain to the C84 | C213 Barrier Supports.
If installed on concrete
Seal the Poly Membrane to the ground using 8 in / 20 cm wide Sealing Tape.

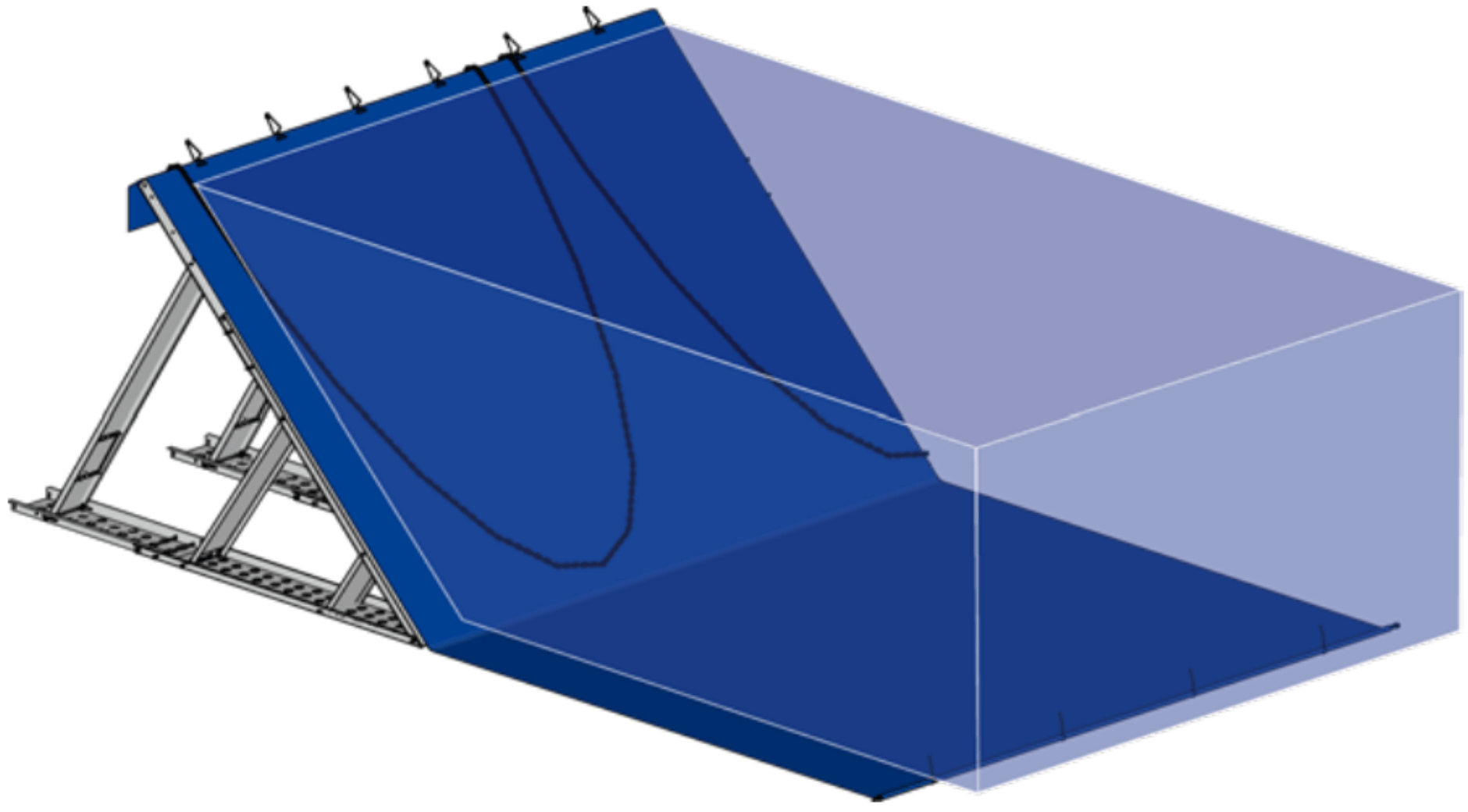

Adjust Sealer Clips when the water enters the Barrier to relax the Poly Membrane. Squeeze out air pockets under the Poly Membrane by gently stepping on them.
Installed and self-anchored as rising water presses the barriers to the ground.
The C152 Heavy Duty System is shipped in durable, weatherproof metal crates designed for both delivery and long-term storage. Each crate is covered with a PVC hood to keep the contents dry and dust-free. These stackable crates are designed for space-efficient storage and can be easily moved with a manual forklift, offering flexible handling on-site.
| Material | Galvanized Steel |
| Dimensions | L1.4 x W1.15 x H0.88 m |
| Weight | 1550 kg |
| Quantity / crate |
90 alu sheets |
| Material | Galvanized Steel |
| Dimensions | L2.4 x W1.15 x H1.2 m |
| Weight | 1220 kg |
| Quantity / crate |
39 supports |
| Material | Galvanized Steel |
| Dimensions | L1.4 x W1.15 x H0.88 m |
| Weight | 750 kg |
| Quantity / crate |
Remaining components |
The C152 Heavy Duty system is efficiently packed in durable, stackable metal crates, all fitting neatly into a 20-foot container. This compact solution offers convenient storage and strategic placement, ensuring fast access and rapid deployment when needed. Simply position the container where it's required—no additional storage space is necessary.
| Combi crate: | 14 units |
| C152 support crate: | 9 units |
| Membrane shelf | 1 unit |
Discover how the C152 Heavy Duty Barrier can be your trusted solution for flood protection. Contact us today for expert guidance and a personalized quote tailored to your needs.
